📘 Overview of Kit

The BNSS–STM32 Industrial Kit is a complete embedded development platform designed for students and engineers.

It includes multiple sensors, displays and communication modules integrated with STM32 microcontroller to support real-time projects.

  • Hands-on practical learning
  • Industry oriented design
  • Supports STM32CubeIDE
  • Multiple interfacing modules

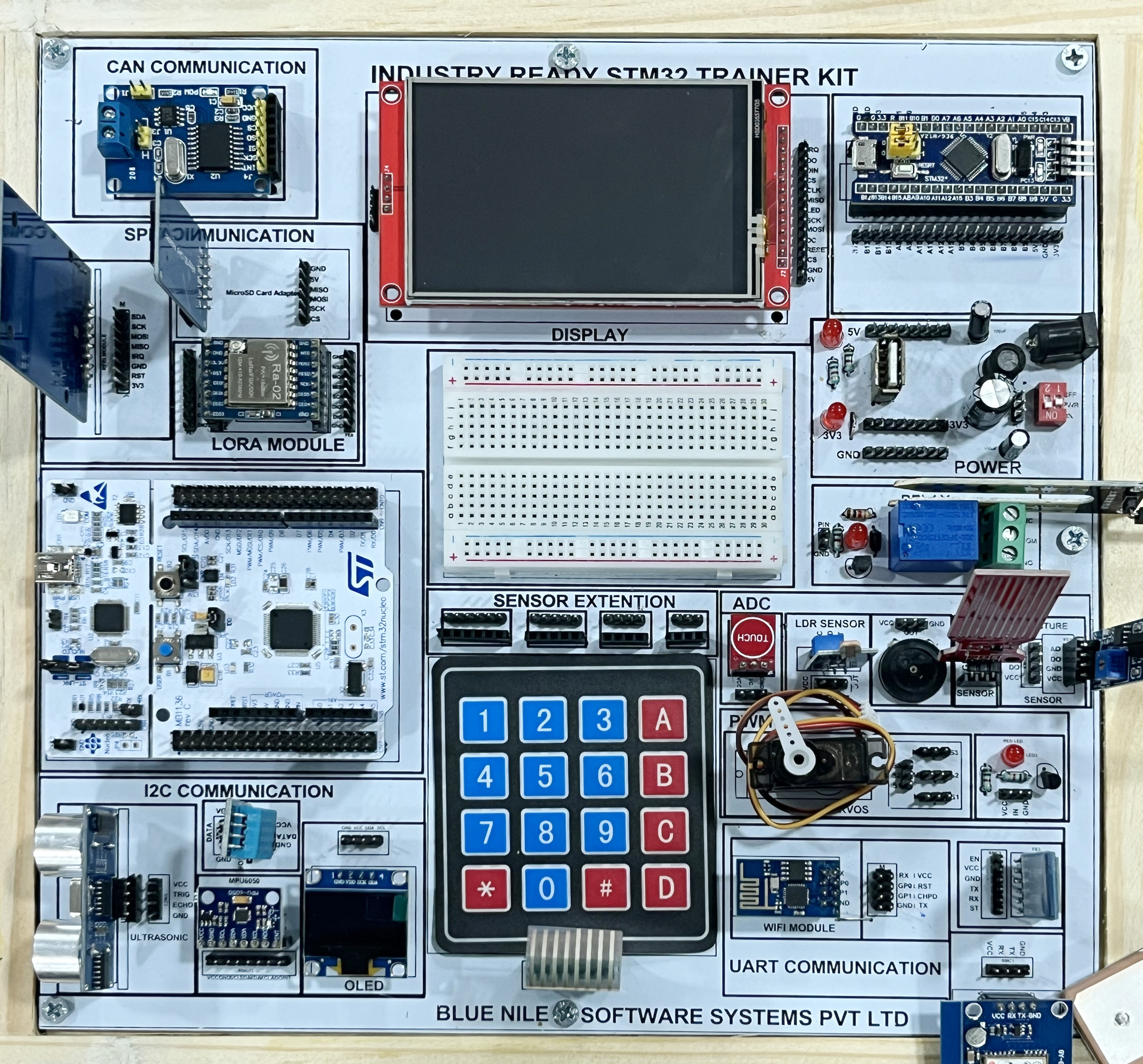

STM32 Kit Image

List of Components & Their Functions

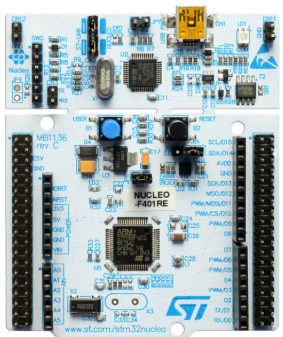

STM32 Nucleo Board

Official STM32 development board used for programming and debugging applications.

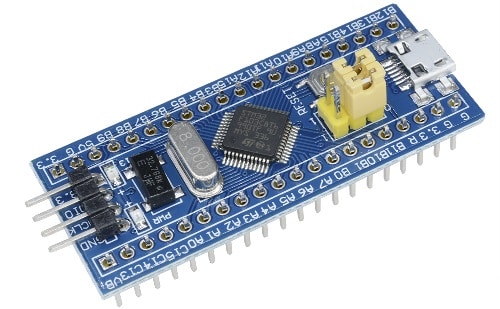

STM32 Blue Pill

Low cost STM32F103 based board widely used for embedded projects and learning.

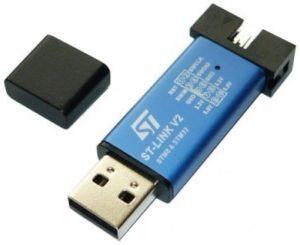

ST-Link V2 Debugger

Used to program and debug STM32 microcontrollers through SWD interface.

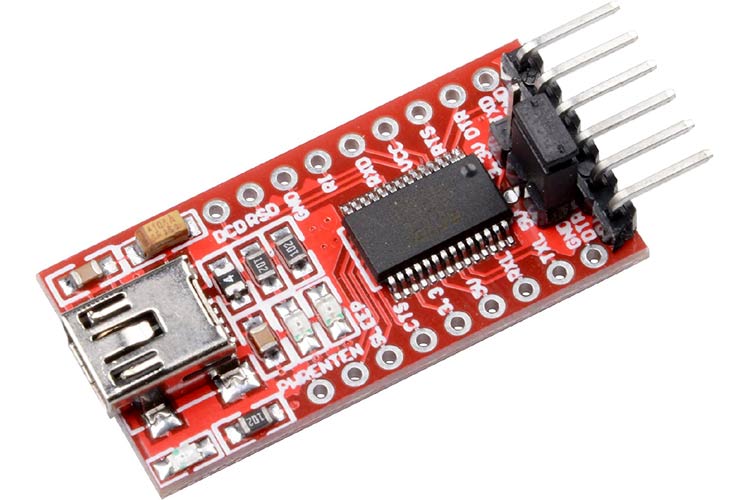

FTDI USB-TTL

Serial converter used for UART communication between PC and microcontroller.

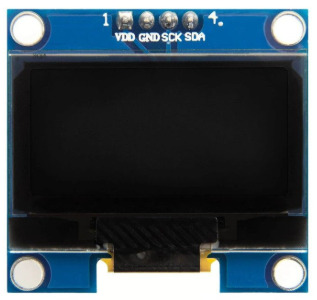

OLED Display

Small graphical display module used to show data and sensor values.

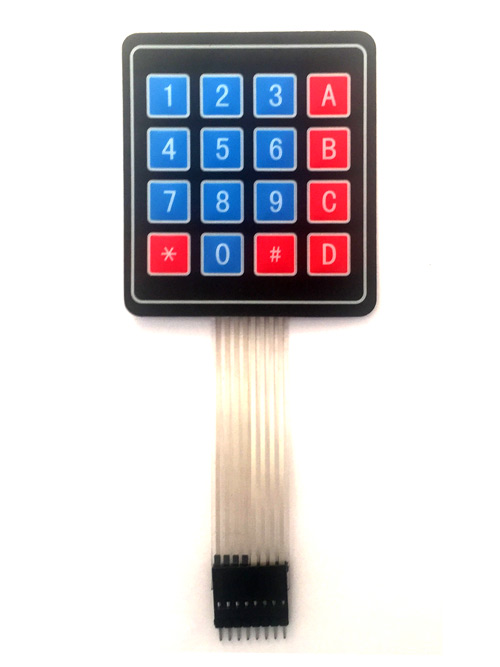

Keypad

Input device used to enter numeric or character data to the system.

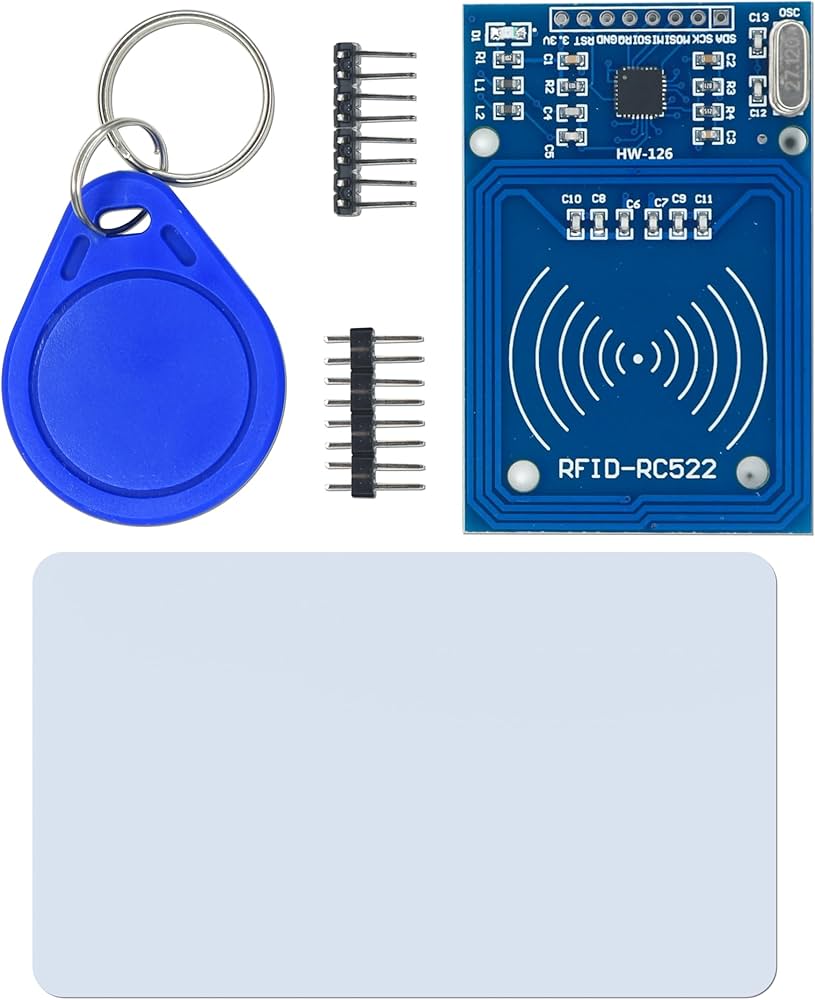

RFID Module

Used for identification and access control using RFID tags.

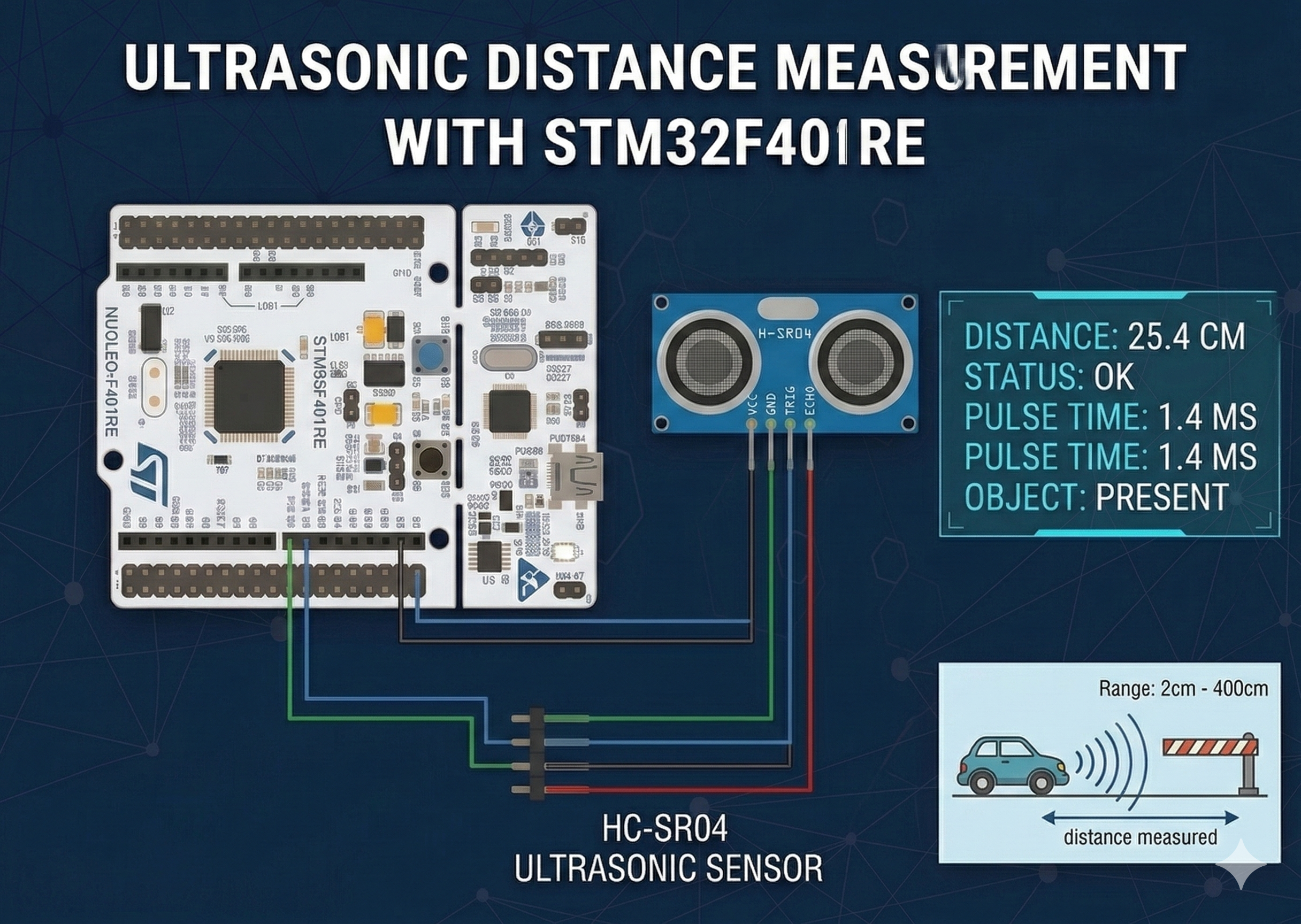

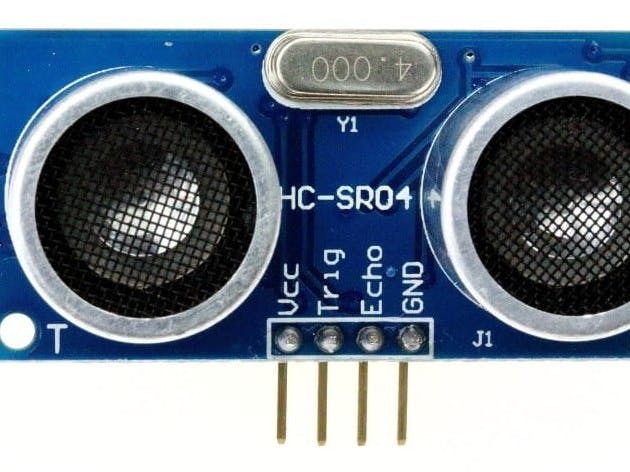

Ultrasonic Sensor

Measures distance by sending and receiving ultrasonic sound waves.

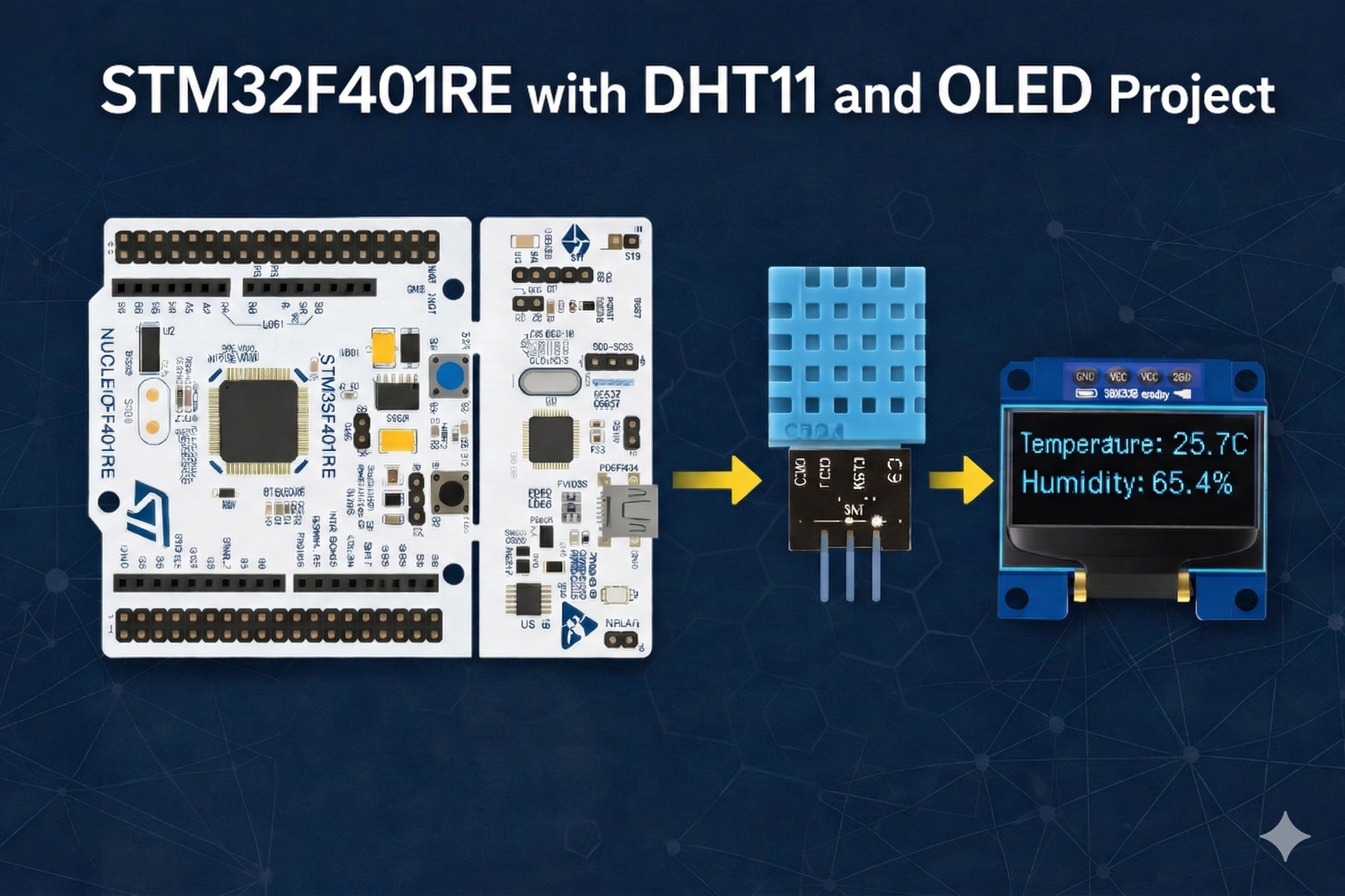

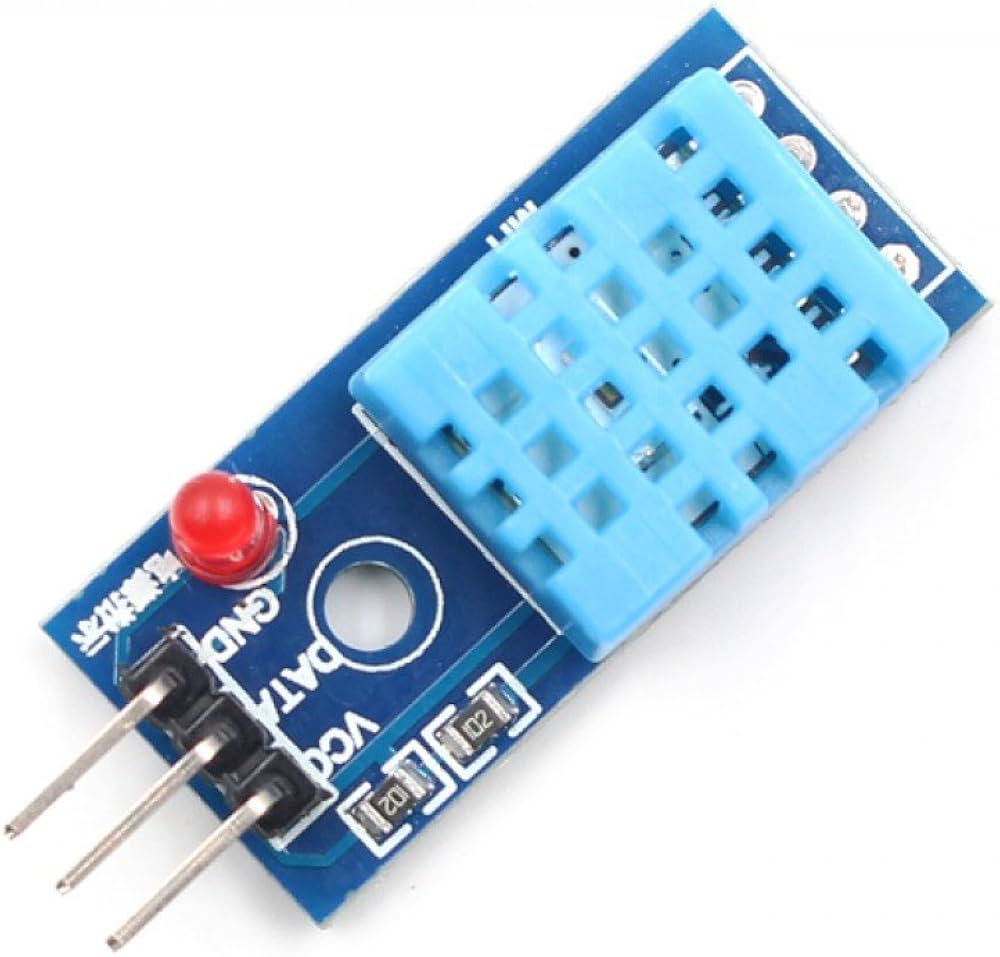

DHT11 Sensor

Measures temperature and humidity in the environment.

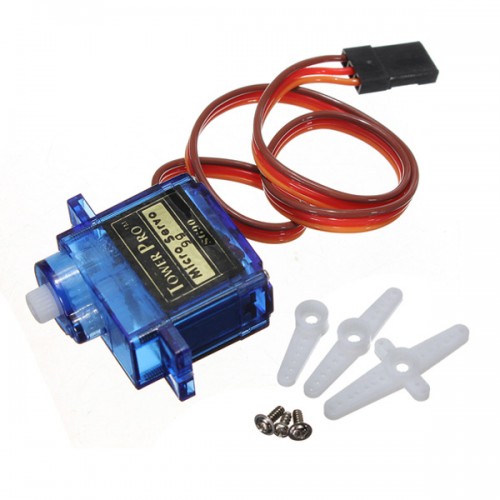

Servo Motor

Used for precise angular movement control in mechanical systems.

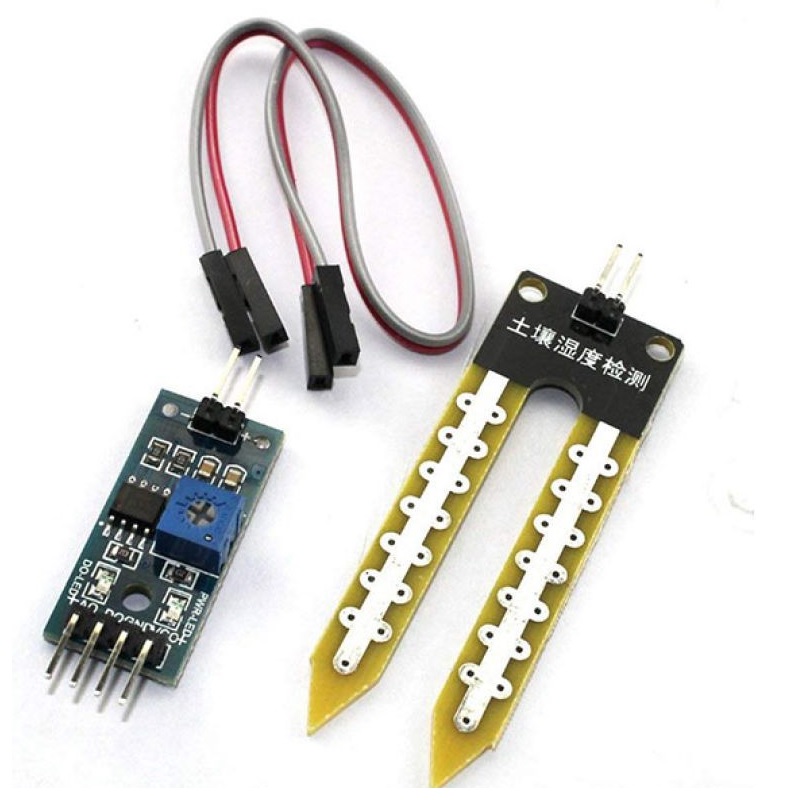

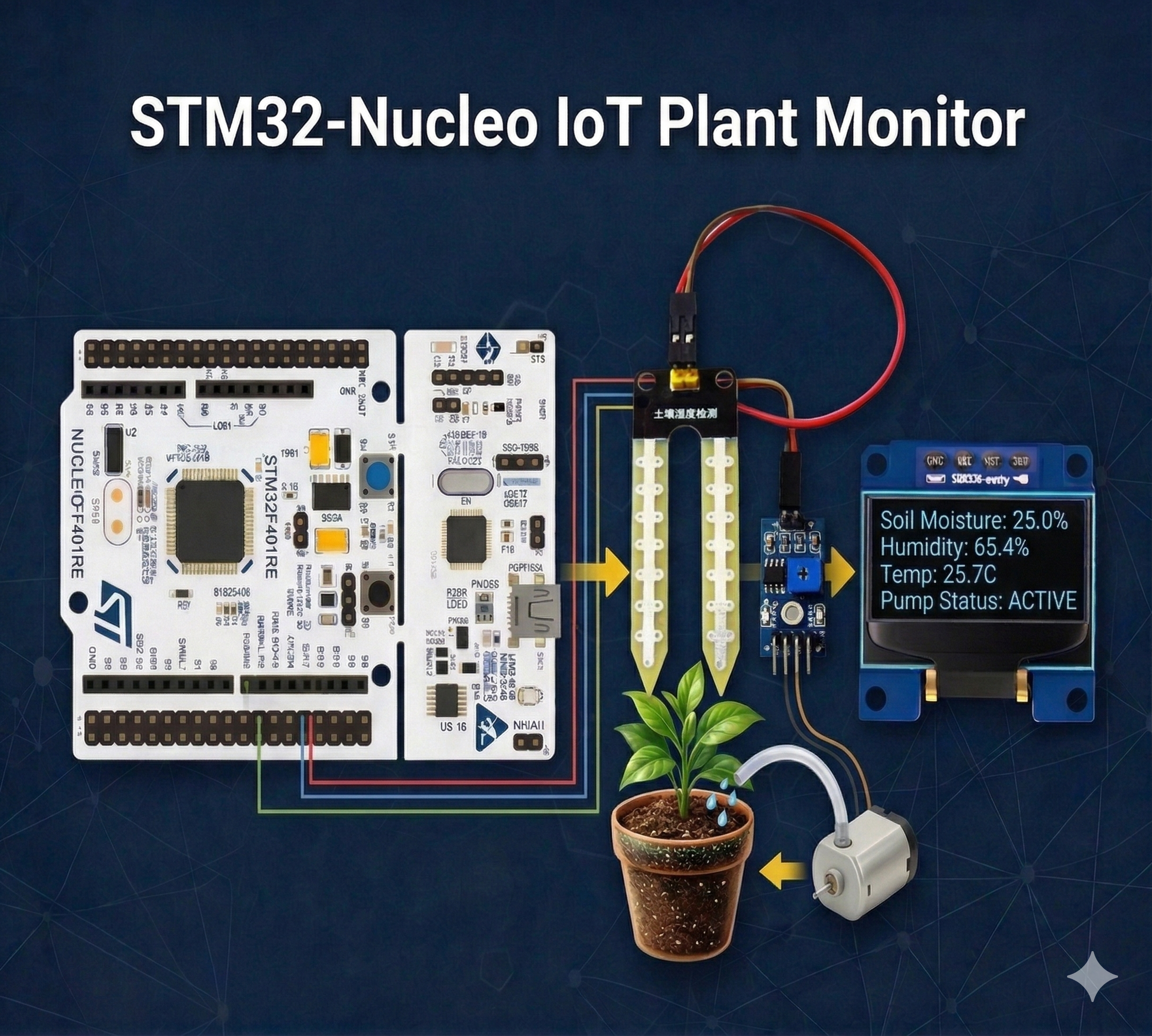

Soil Moisture Sensor

Detects moisture content in soil for irrigation applications.

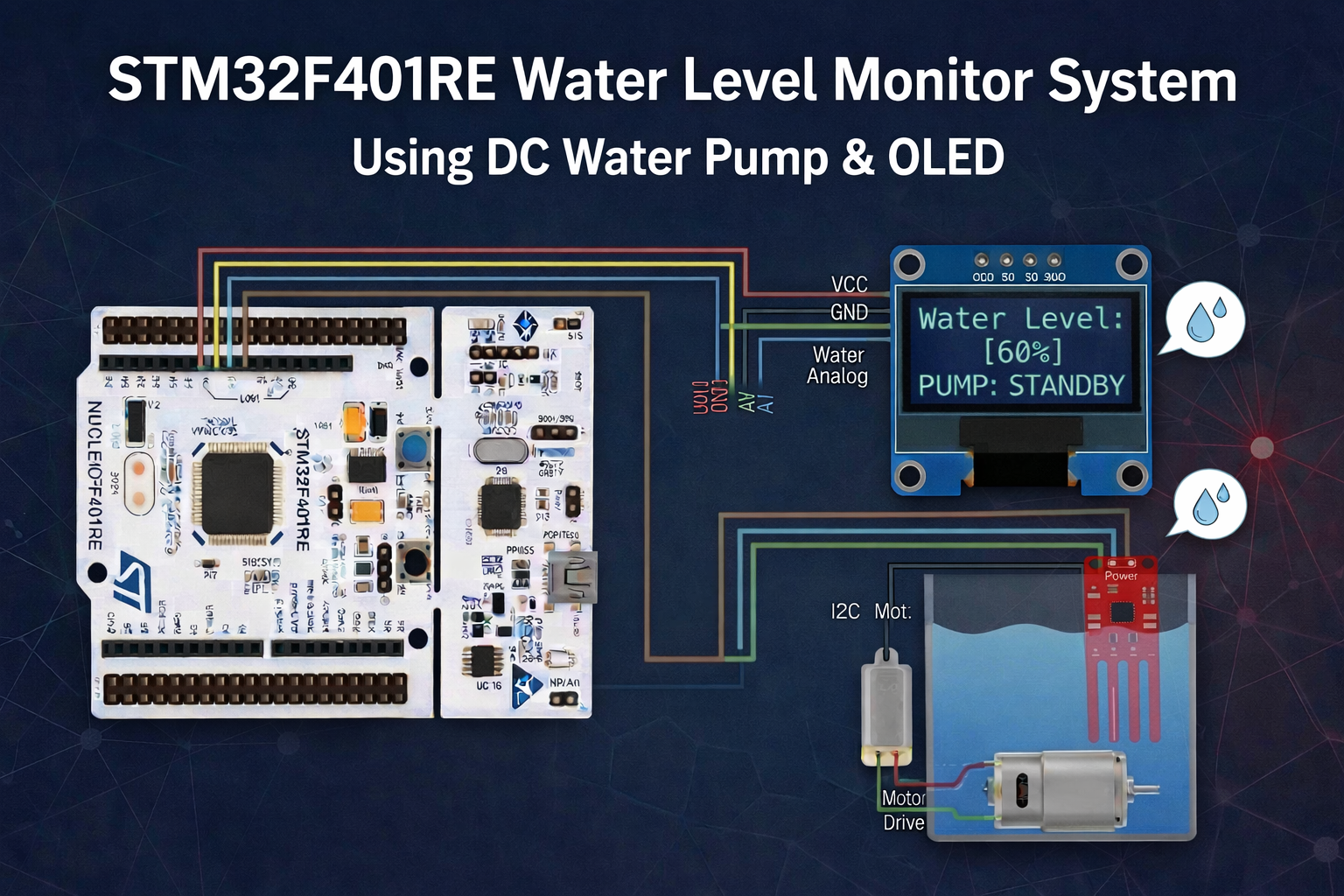

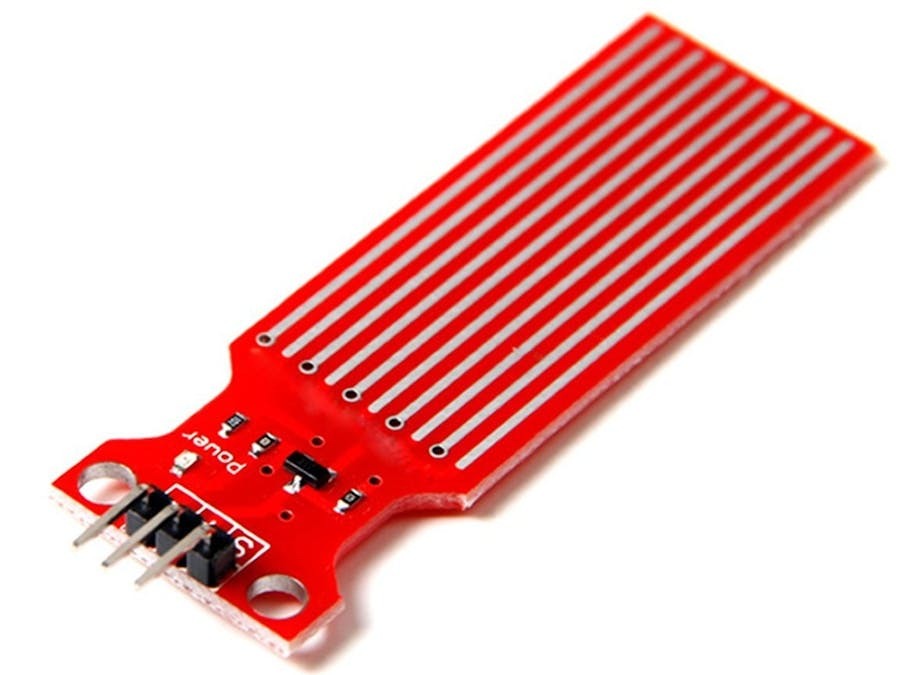

Water Level Sensor

Used to detect and monitor the level of water in tanks.

LED Indicators

Used to indicate power, status and output signals.

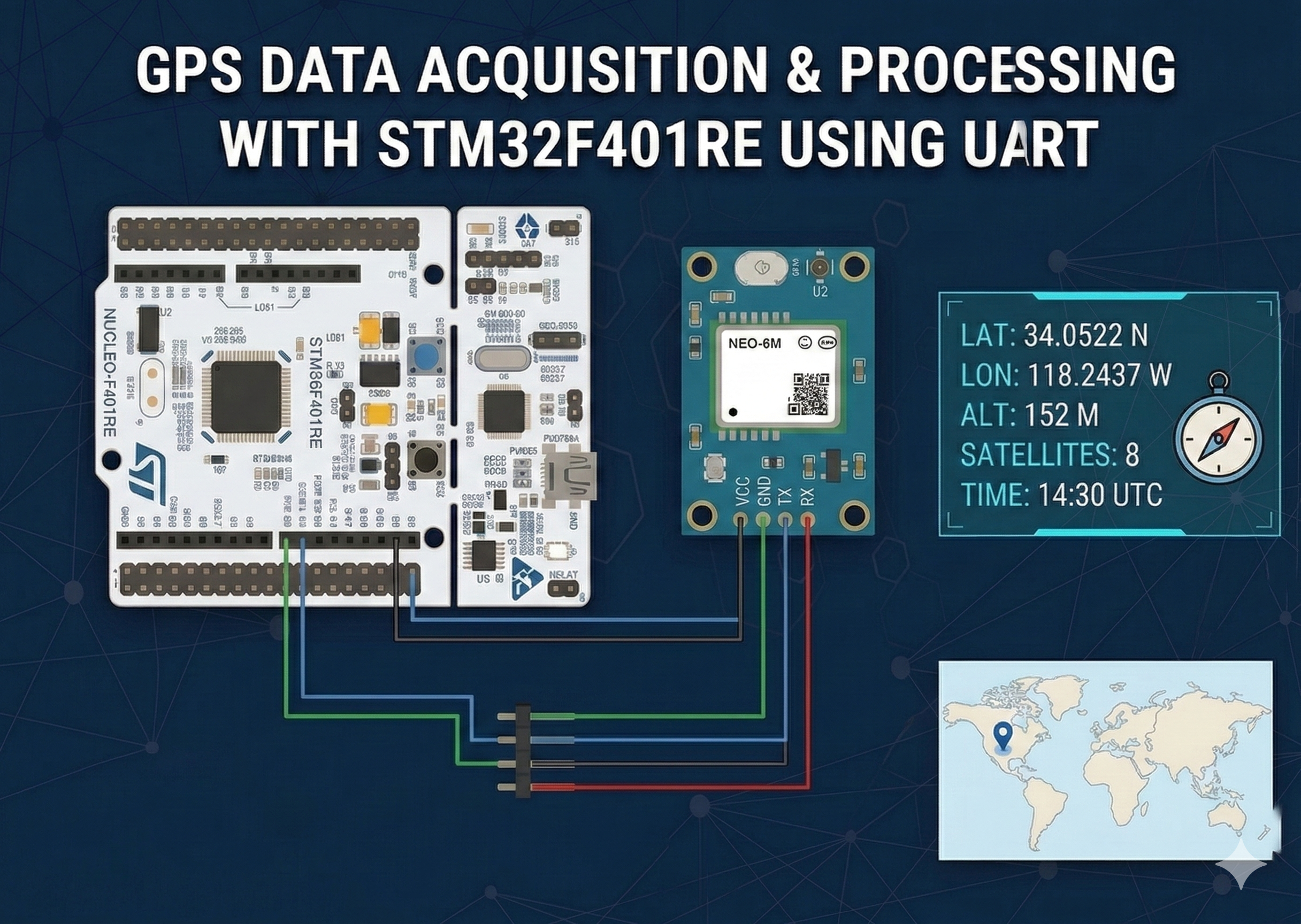

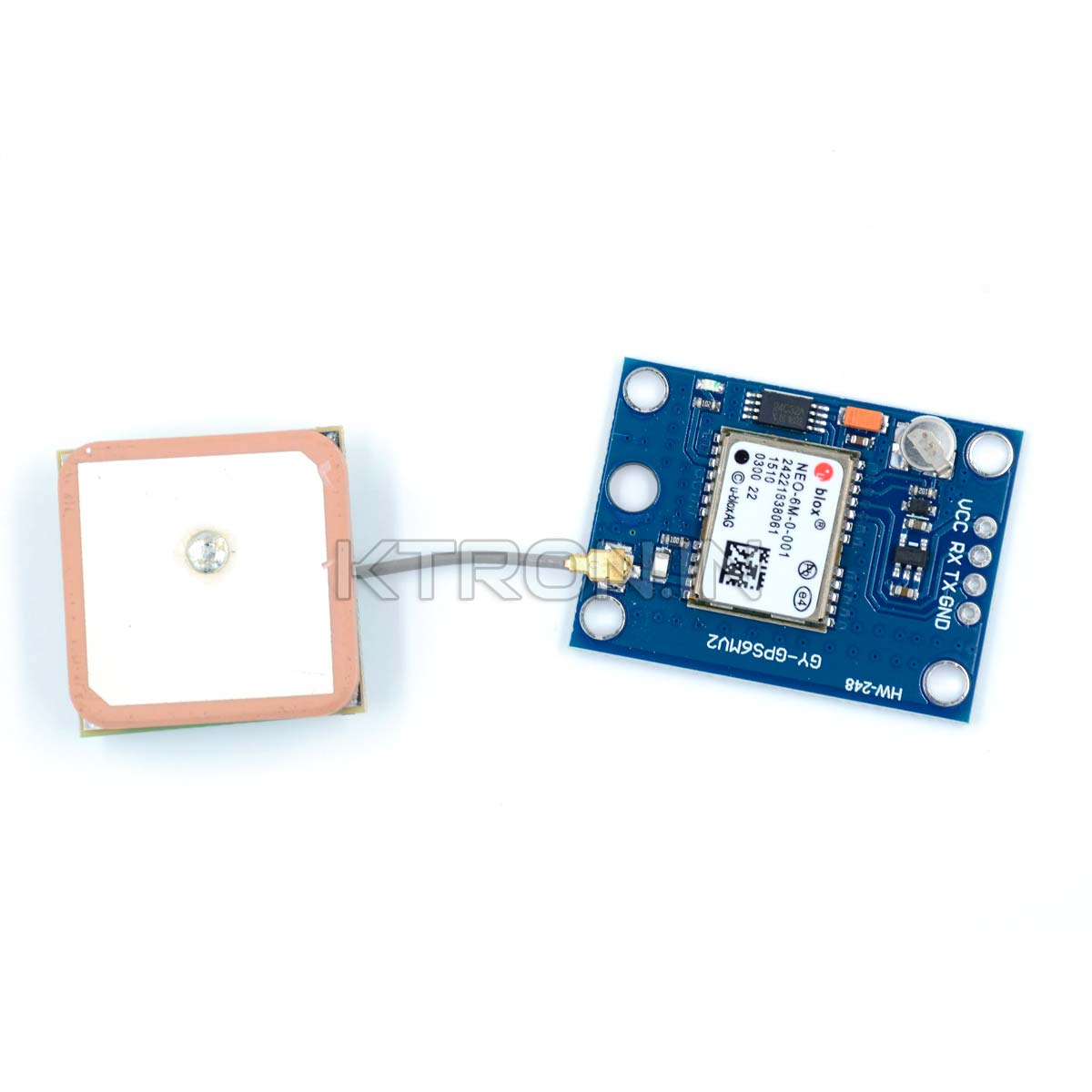

GPS Module

Provides real-time location, latitude and longitude data.

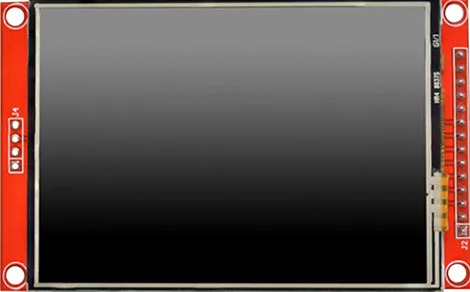

ILI9488 TFT SPI Display

High resolution color display used for GUI applications.

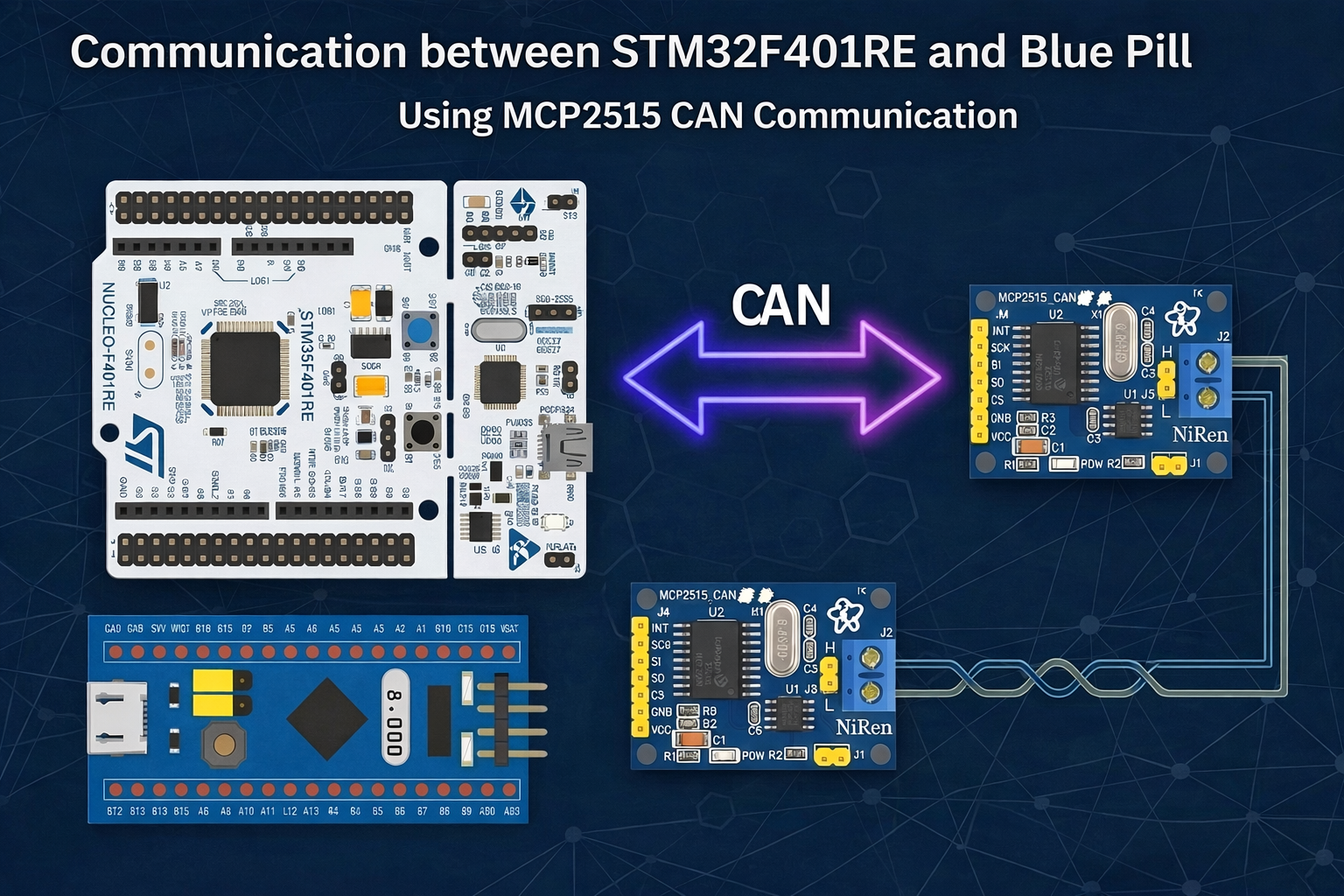

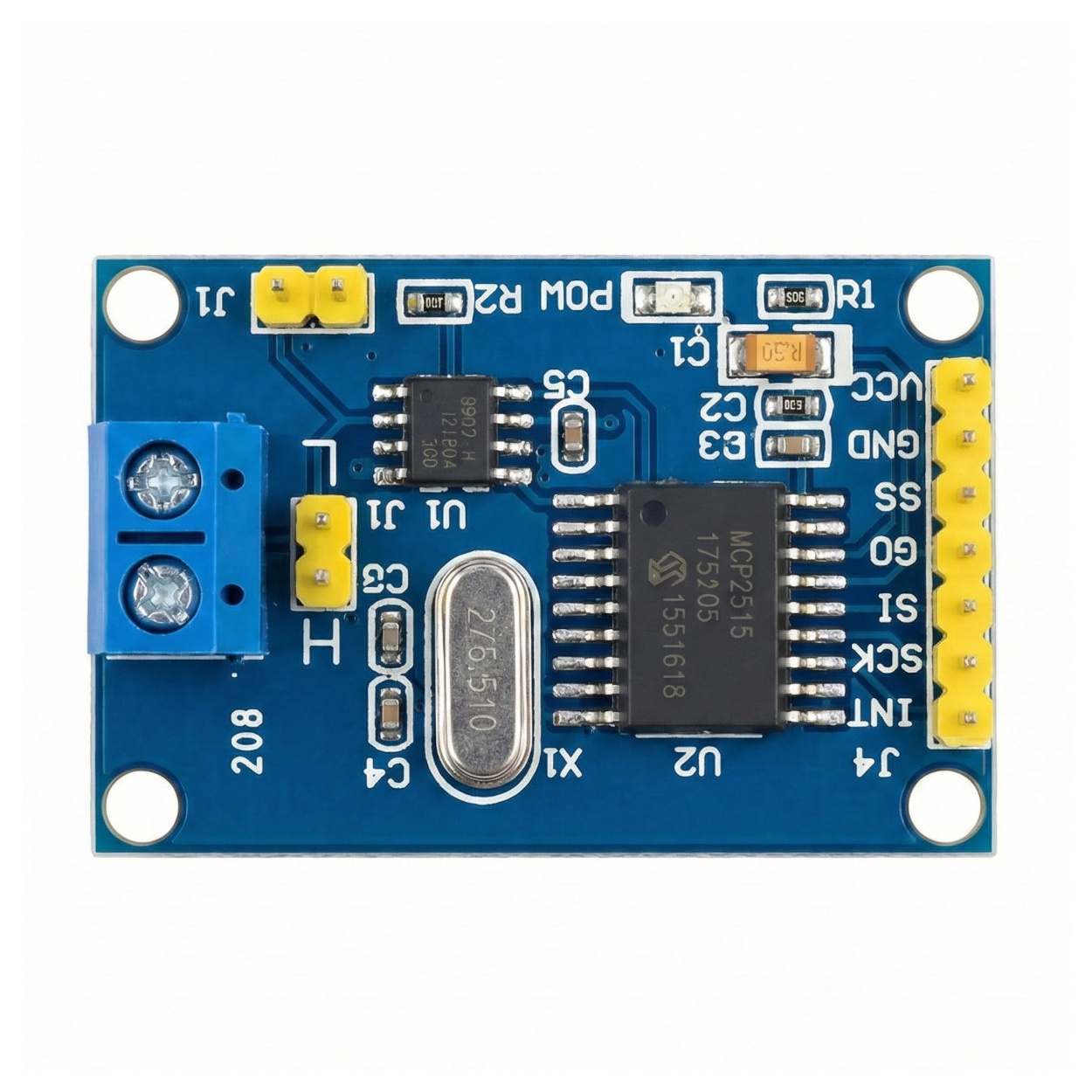

MCP2515 CAN Module

Used for CAN bus communication in automotive and industrial systems.

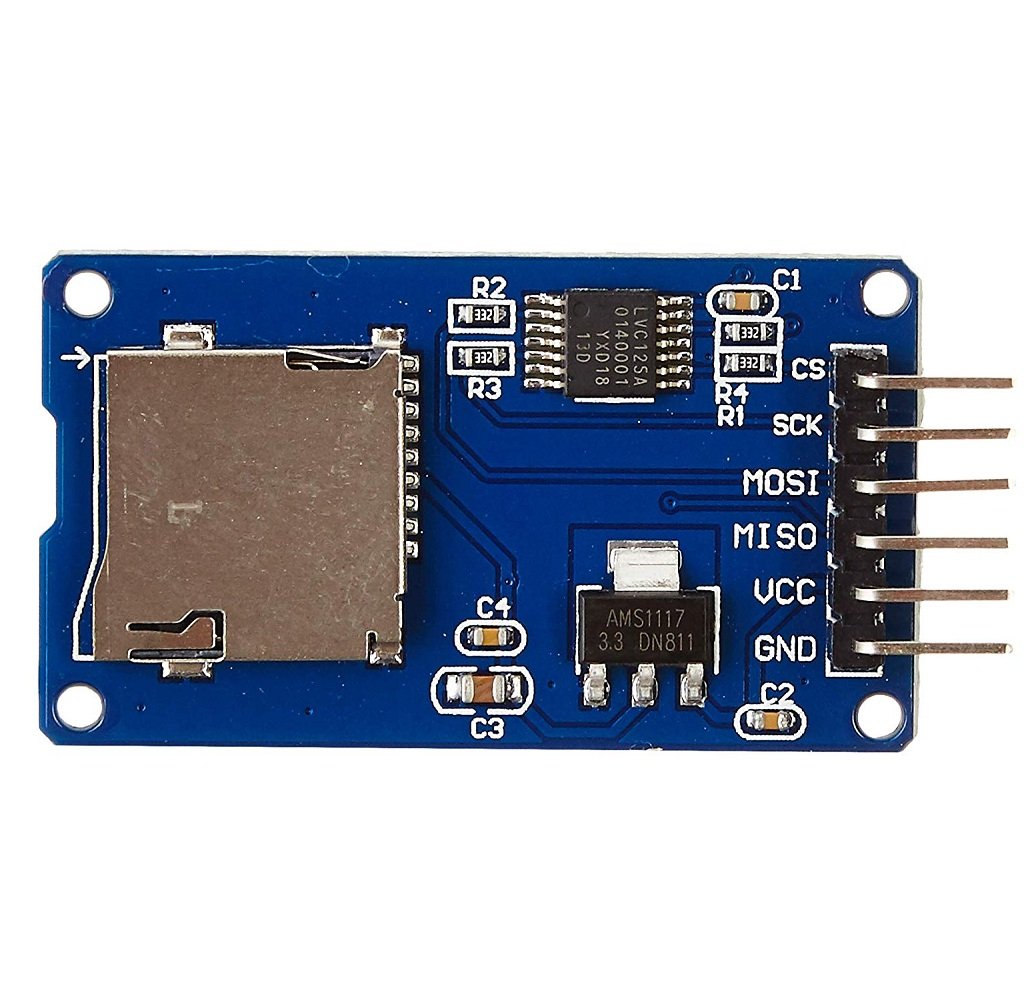

MicroSD Card Reader

Used to store and retrieve data from SD memory cards.

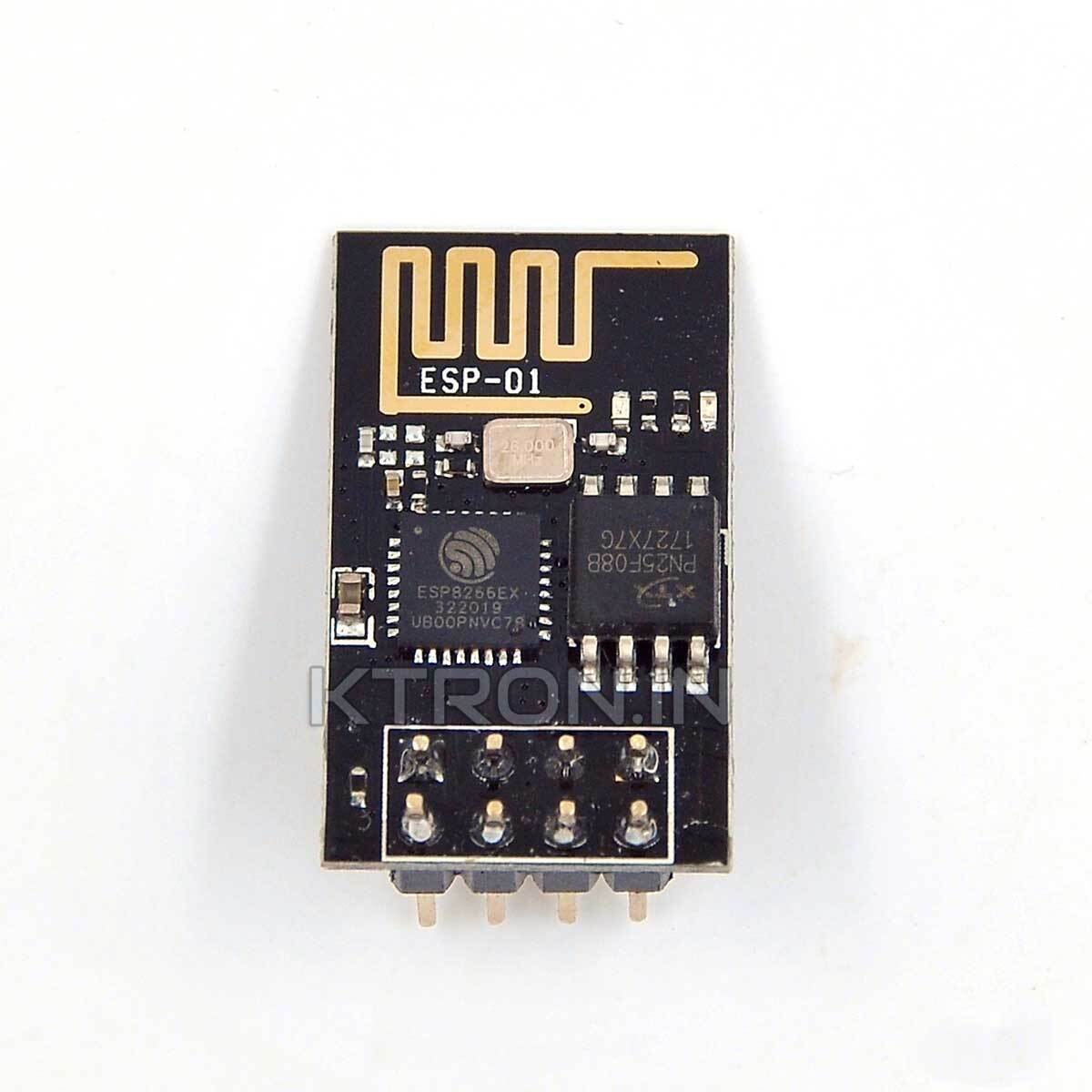

WiFi ESP01

WiFi module used to connect STM32 with internet and IoT applications.

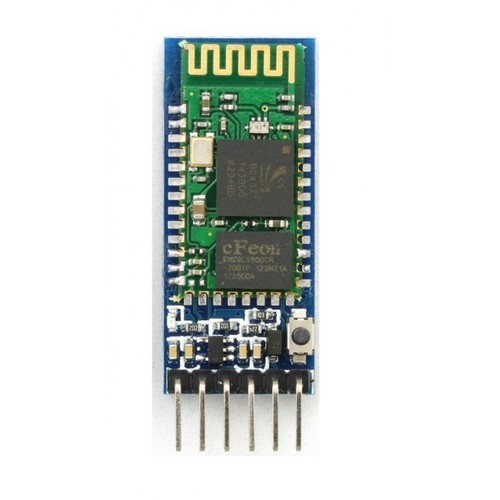

Bluetooth HC-05

Wireless communication module for serial Bluetooth connectivity.

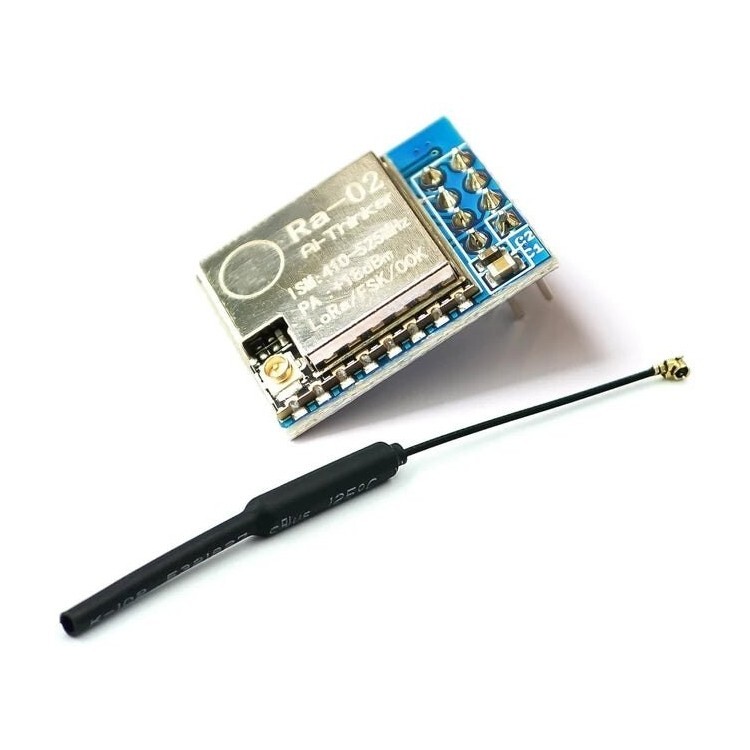

LoRa Module

Long range wireless communication module for IoT networks.

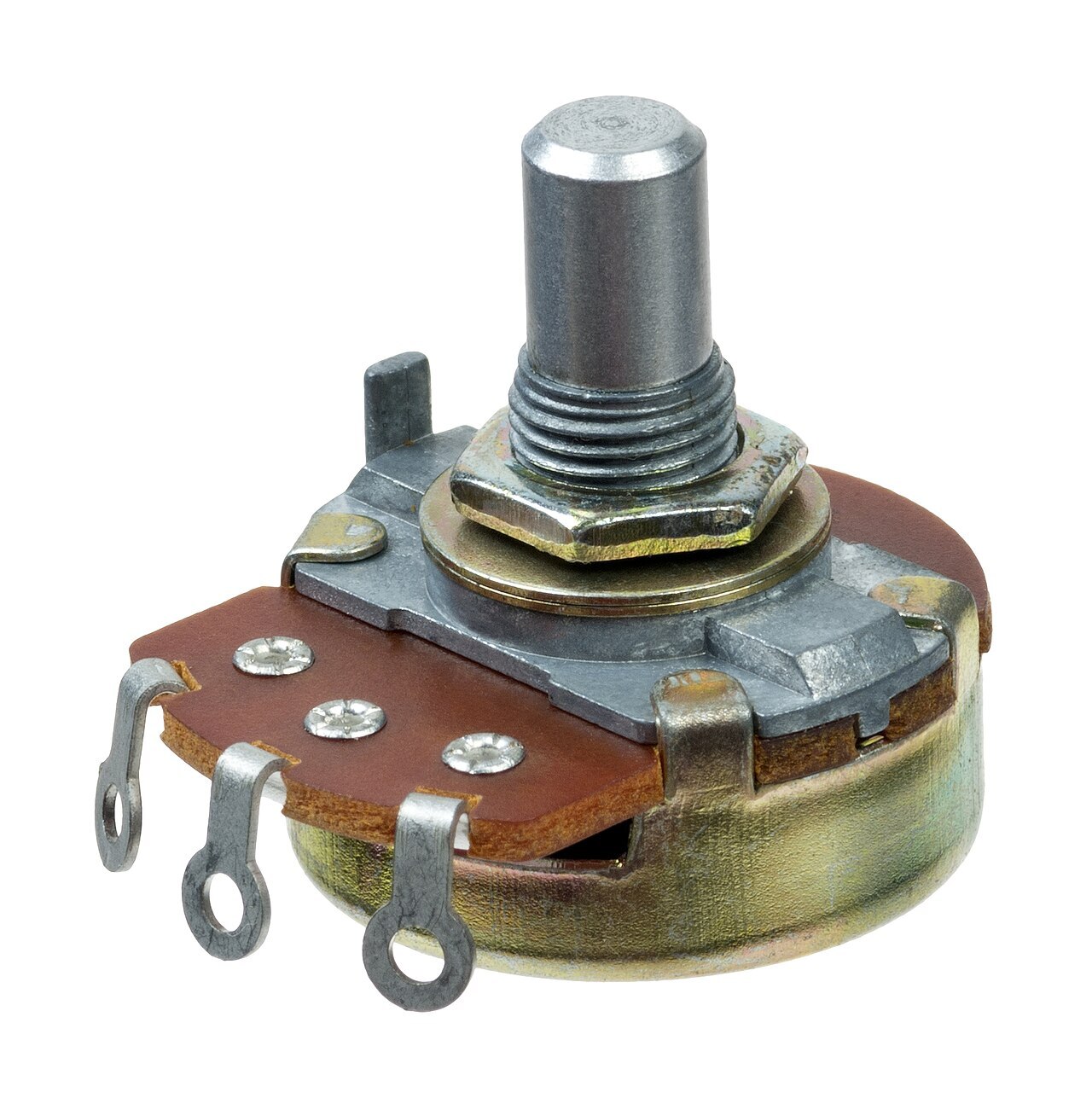

Potentiometer

Variable resistor used to provide analog input to the controller.

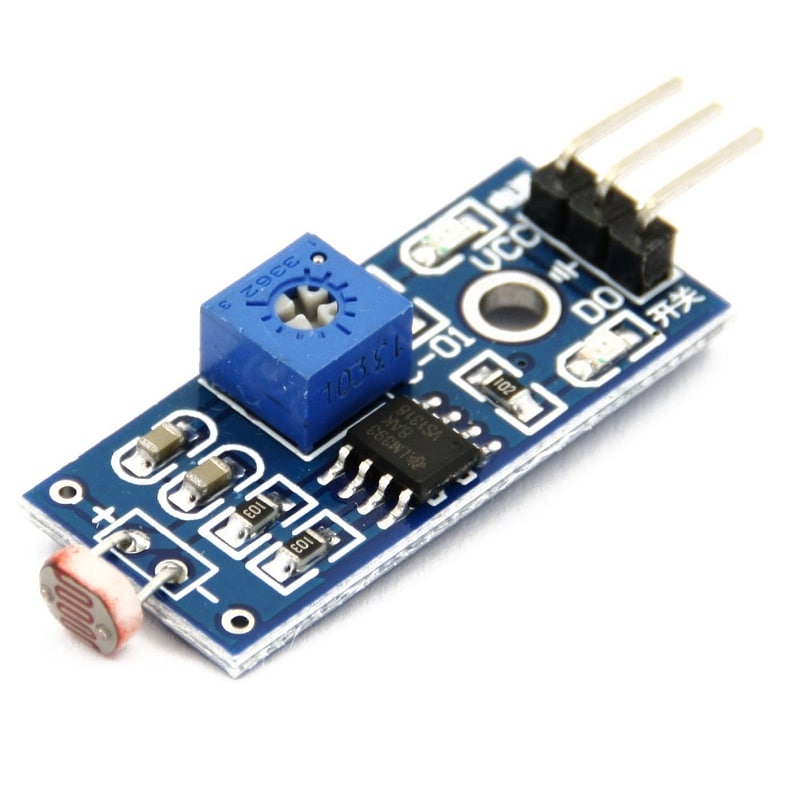

LDR

Light Dependent Resistor used to detect light intensity.

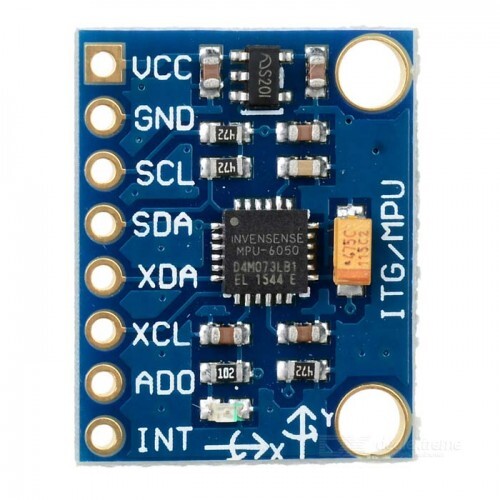

MPU6050

6-axis accelerometer and gyroscope sensor for motion tracking.

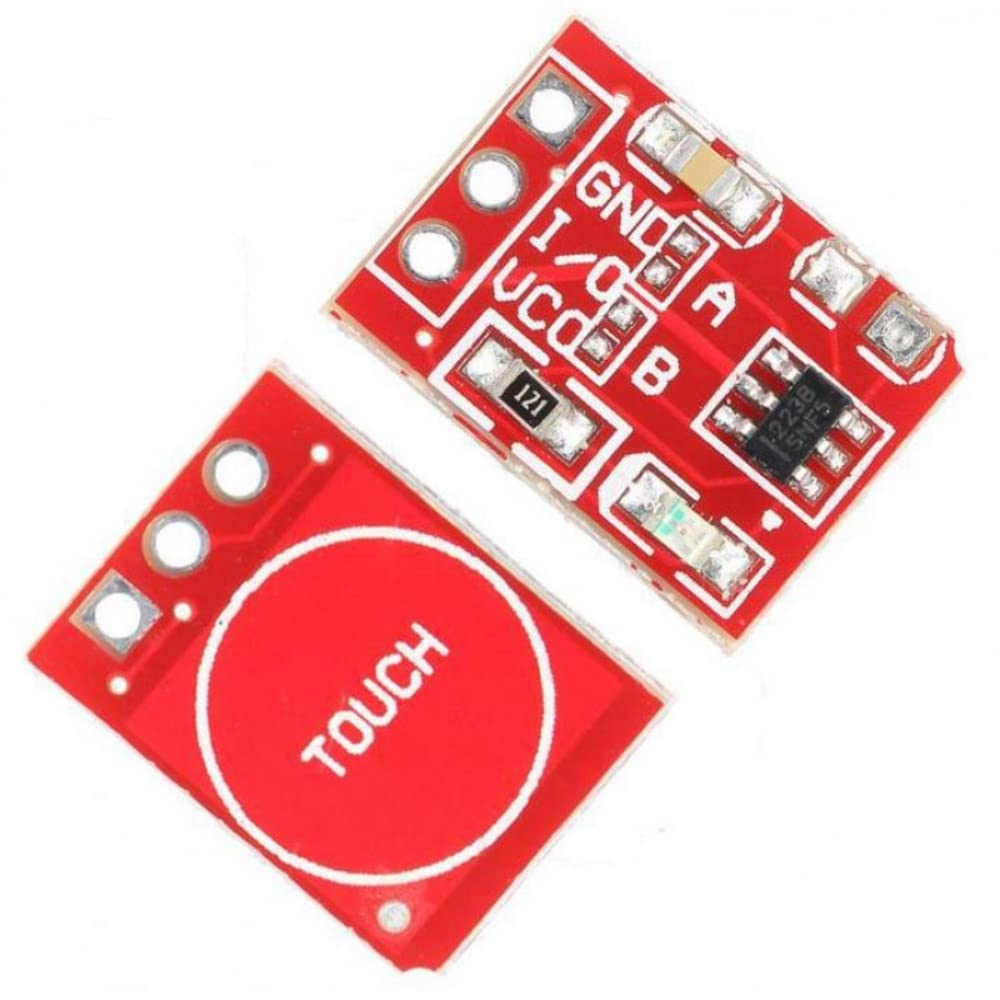

Touch Sensor

Capacitive sensor used to detect human touch input.

SD Card Reader

Capacitive sensor used to detect human touch input.
